线程同步机制包装类

发表于 2022-04-19 更新于 2023-10-07 分类于 concurrent-programming
本文字数： 159 阅读时长 ≈ 1 分钟

#ifndef LOCKER_H
#define LOCKER_H

#include <exception>
#include <pthread.h>
#include <semaphore.h>

class sem {
 public:
  sem() {
    if (sem_init(&m_sem, 0, 0) != 0) {
      throw std::exception();
    }
  }
  ~sem() {
    sem_destroy(&m_sem);
  }
  bool wait() {
    return sem_wait(&m_sem) == 0;
  }
  bool post() {
    return sem_post(&m_sem) == 0;
  }

 private:
  sem_t m_sem;
};

class locker {
 public:
  locker() {
    if (pthread_mutex_init(&m_mutex, NULL) != 0) {
      throw std::exception();
    }
  }

  ~locker() {
    pthread_mutex_destroy(&m_mutex);
  }

  bool lock() {
    return pthread_mutex_lock(&m_mutex) == 0;
  }

  bool unlock() {
    return pthread_mutex_unlock(&m_mutex) == 0;
  }

 private:
  pthread_mutex_t m_mutex;
};

// 封装条件变量的类
class cond {
 public:
  cond() {
    if (pthread_mutex_init(&m_mutex, NULL) != 0) {
      throw std::exception();
    }
    if (pthread_cond_init(&m_cond, NULL) != 0) {
      pthread_mutex_destroy(&m_mutex);
      throw std::exception();
    }
  }

  ~cond() {
    pthread_mutex_destroy(&m_mutex);
    pthread_cond_destroy(&m_cond);
  }

  bool wait() {
    int ret = 0;
    pthread_mutex_lock(&m_mutex);
    ret = pthread_cond_wait(&m_cond, &m_mutex);
    pthread_mutex_unlock(&m_mutex);
    return ret == 0;
  }

  bool signal() {
    return pthread_cond_signal(&m_cond) == 0;
  }

 private:
  pthread_mutex_t m_mutex;
  pthread_cond_t m_cond;
};

#endif

充分复用代码供后续使用。

reference：高性能服务器编程——游双 $P_{280}$

不相干进程之间传递fd

发表于 2022-04-04 更新于 2023-10-07 分类于 socket-programming ， concurrent-programming
本文字数： 412 阅读时长 ≈ 1 分钟

#include <sys/socket.h>
#include <fcntl.h>
#include <stdio.h>
#include <unistd.h>
#include <stdlib.h>
#include <assert.h>
#include <string.h>

static const int CONTROL_LEN = CMSG_LEN(sizeof(int));
// 发送文件描述符，fd参数适用来传递信息的unix域socket，fd_to_send参数是待发送文件的文件描述符
void send_fd(int fd, int fd_to_send) {
  struct iovec iov[1]; // 单次系统调用对多个缓冲区进行读写
    struct msghdr msg;
    char buf[0];

    iov[0].iov_base = buf;
    iov[0].iov_len = 1;
    msg.msg_name = NULL;
    msg.msg_namelen= 0;
    msg.msg_iov = iov;
    msg.msg_iovlen = 1;

    cmsghdr cm;
    cm.cmsg_len = CONTROL_LEN;
    cm.cmsg_level = SOL_SOCKET;
    cm.cmsg_type = SCM_RIGHTS;
    *(int *)CMSG_DATA(&cm) = fd_to_send;
    // 设置辅助数据
    msg.msg_control = &cm;
    msg.msg_controllen = CONTROL_LEN;

    sendmsg(fd, &msg, 0);
}
// 接收目标文件描述符
int recv_fd(int fd) {
    struct iovec iov[1];
    struct msghdr msg;
    char buf[0];

    iov[0].iov_base = buf;
    iov[0].iov_len = 1;
    msg.msg_name = NULL;
    msg.msg_namelen = 0;
    msg.msg_iov = iov;
    msg.msg_iovlen = 1;

    cmsghdr cm;
    msg.msg_control = &cm;
    msg.msg_controllen = CONTROL_LEN;

    recvmsg(fd, &msg, 0);

    int fd_to_read = *(int *)CMSG_DATA(&cm);
    return fd_to_read;
}

int main()
{
    int pipefd[2];
    int fd_to_pass = 0;
    // 创建父子进程间的管道，文件描述符fd[0] fd[1]都是unix域的socket
    int ret = socketpair(PF_UNIX, SOCK_DGRAM, 0, pipefd);
    assert(ret != -1);

    pid_t pid = fork();
    assert(pid >= 0);

    if (pid == 0) { // 子进程
        close(pipefd[0]);
        fd_to_pass = open("test.txt", O_RDWR, 0666);
        // 子进程通过管道将文件描述符发送到父进程，如果文件test.txt打开失败，则子进程将标准输入文件描述符发送到父进程
        send_fd(pipefd[1], (fd_to_pass > 0) ? fd_to_pass : 0);
        close(fd_to_pass);
        exit(0);
    }

    close(pipefd[1]); // 父进程
    fd_to_pass = recv_fd(pipefd[0]);
    char buf[1024];
    memset(buf, '\0', 1024);
    read(fd_to_pass, buf, 1024);
    printf("I got fd %d and data %s\n", fd_to_pass, buf);
    close(fd_to_pass);
}

子进程把打开的文件描述符fd值放入一个socket中，父进程从socket中读到fd的值，最后再读fd中的内容。
运行结果：

reference：
linux高性能服务器编程——游双 $P_{267}$

基于共享内存的聊天室服务程序

发表于 2022-03-17 更新于 2023-10-07 分类于 socket-programming ， concurrent-programming
本文字数： 1.7k 阅读时长 ≈ 6 分钟

服务器代码如下：

#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <assert.h>
#include <stdio.h>
#include <unistd.h>
#include <errno.h>
#include <string.h>
#include <fcntl.h>
#include <stdlib.h>
#include <sys/epoll.h>
#include <signal.h>
#include <sys/wait.h>
#include <sys/mman.h>
#include <sys/stat.h>
#include <fcntl.h>

#define USER_LIMIT 5
#define BUFFER_SIZE 1024
#define FD_LIMIT 65535
#define MAX_EVENT_NUMBER 1024
#define PROCESS_LIMIT 65536

struct client_data {
    sockaddr_in address; // 客户端ip地址
    int connfd;         // socket文件描述符
    pid_t pid;         //  处理这个连接的子进程pid
    int pipefd[2];      // 和父进程通信用的管道
};

static const char* shm_name = "/my_shm";
int sig_pipefd[2];
int epollfd;
int listenfd;
int shmfd;

char* share_mem = 0;

client_data* users = 0; // 客户连接数组，进程用客户连接的编号来索引这个数组

int* sub_process = 0; // 子进程和客户连接的映射关系表。用进程的pid来索引这个数组，即可取得该进程 所处理的客户连接 的编号

int user_count = 0; // 当前客户数量
bool stop_child = false;

int setnonblocking(int fd) {
    int old_option = fcntl(fd, F_GETFL);
    int new_option = old_option | O_NONBLOCK;
    fcntl(fd, F_SETFL, new_option);
    return old_option;
}

void addfd(int epollfd, int fd) {
    epoll_event event;
    event.data.fd = fd;
    event.events = EPOLLIN | EPOLLET;
    epoll_ctl(epollfd, EPOLL_CTL_ADD, fd, &event);
    setnonblocking(fd);
}

void sig_handler(int sig) {
    int save_errno = errno;
    int msg = sig;
    send(sig_pipefd[1], (char*)&msg, 1, 0);
    errno = save_errno;
}

void addsig(int sig, void(*handler)(int), bool restart = true) {
    struct sigaction sa;
    memset(&sa, '\0', sizeof(sa));
    sa.sa_handler = handler;
    if (restart) {
        sa.sa_flags |= SA_RESTART;
    }
    sigfillset(&sa.sa_mask);
    assert(sigaction(sig, &sa, NULL) != -1);
}

void del_resource() {
    close(sig_pipefd[0]);
    close(sig_pipefd[1]);
    close(listenfd);
    close(epollfd);
    shm_unlink(shm_name);
    delete[] users;
    delete[] sub_process;
}

void child_term_handler(int sig) { // 停止一个子进程
    stop_child = true;
}

// 子进程运行的函数。参数idx指出该子进程处理的客户连接的编号，users是保存所有客户连接数据的数组。参数share_mem指出共享内存的起始地址
int run_child(int idx, client_data* users, char* share_mem) {
    epoll_event events[MAX_EVENT_NUMBER];
    // 子进程用io复用技术来同时监听两个文件描述符： 客户连接socket和与父进程的管道文件描述符
    int child_epollfd = epoll_create(5);
    assert(child_epollfd != -1);
    int connfd = users[idx].connfd; // 客户端socket
    addfd(child_epollfd, connfd);
    int pipefd = users[idx].pipefd[1]; // 父进程管道文件描述符
    addfd(child_epollfd, pipefd);
    int ret;
    // 子进程设置自己的信号处理函数
    addsig(SIGTERM, child_term_handler, false);

    while (!stop_child) {
        int number = epoll_wait(child_epollfd, events, MAX_EVENT_NUMBER, -1);
        if ((number < 0) && (errno != EINTR)) {
            printf("epoll failure\n");
            break;
        }

        for (int i = 0; i < number; i++) {
            int sockfd = events[i].data.fd;
            // 本子进程负责的客户连接有数据到达
            if ((sockfd == connfd) && (events[i].events & EPOLLIN)) {
                memset(share_mem + idx * BUFFER_SIZE, '\0', BUFFER_SIZE);
                // 将客户数据读取到对应 读缓存 中。 读缓存是共享内存的一段，开始于 idx*BUFFER_SIZE处，长度为BUFFER_SIZE字节。因此，各个客户连接的
                // 读缓存是共享的
                ret = recv(connfd, share_mem + idx * BUFFER_SIZE, BUFFER_SIZE - 1, 0);
                if (ret < 0) {
                    if (errno != EAGAIN) {
                        stop_child = true;
                    }
                } else if (ret == 0) {
                    stop_child = true;
                } else {
                    // 成功读取客户数据后就通知主进程（通过管道）来处理
                    send(pipefd, (char*)&idx, sizeof(idx), 0);
                }
                // 主进程通知本进程（通过管道）将第client个客户的数据发送到本进程负责处理的客户端
            } else if ((sockfd == pipefd) && (events[i].events & EPOLLIN)) {
                int client = 0;
                // 接收主进程发送来的数据，即 有客户数据到达的连接 的编号。
                ret = recv(sockfd, (char*)&client, sizeof(client), 0);
                if (ret < 0) {
                    if (errno != EAGAIN) {
                        stop_child = true;
                    }
                } else if (ret == 0) {
                    stop_child = true;
                } else {
                    send(connfd, share_mem + client * BUFFER_SIZE, BUFFER_SIZE, 0); // 通知这个子进程负责的connfd，有个编号为client的客户端发消息了，把这段消息发给connfd
                }
            } else {
                continue;
            }
        }
    }

    close(connfd);
    close(pipefd);
    close(child_epollfd);
    return 0;
}

int main(int argc, char* argv[])
{
    if (argc <= 2) {
        printf("usage: %s ip_address port_number\n", basename(argv[0]));
        return 1;
    }
    const char* ip = argv[1];
    int port = atoi(argv[2]);

    int ret = 0;
    struct sockaddr_in address;
    bzero(&address, sizeof(address));
    address.sin_family = AF_INET;
    inet_pton(AF_INET, ip, &address.sin_addr);
    address.sin_port = htons(port);

    listenfd = socket(PF_INET, SOCK_STREAM, 0);
    assert(listenfd >= 0);

    ret = bind(listenfd, (struct sockaddr*)&address, sizeof(address));
    assert(ret != -1);

    ret = listen(listenfd, 5);
    assert(ret != -1);

    user_count = 0;
    users = new client_data[USER_LIMIT + 1];
    sub_process = new int[PROCESS_LIMIT];
    for (int i = 0; i < PROCESS_LIMIT; ++i) {
        sub_process[i] = -1;
    }

    epoll_event events[MAX_EVENT_NUMBER];
    epollfd = epoll_create(5);
    assert(epollfd != -1);
    addfd(epollfd, listenfd);

    ret = socketpair(PF_UNIX, SOCK_STREAM, 0, sig_pipefd);
    assert(ret != -1);
    setnonblocking(sig_pipefd[1]);
    addfd(epollfd, sig_pipefd[0]);

    addsig(SIGCHLD, sig_handler);
    addsig(SIGTERM, sig_handler);
    addsig(SIGINT, sig_handler);
    addsig(SIGPIPE, SIG_IGN);
    bool stop_server = false;
    bool terminate = false;

    // 创建共享内存，作为所有客户socket连接的读缓存
    shmfd = shm_open(shm_name, O_CREAT | O_RDWR, 0666);
    assert(shmfd != -1);
    ret = ftruncate(shmfd, USER_LIMIT * BUFFER_SIZE);
    assert(ret != -1);

    share_mem = (char*)mmap(NULL, USER_LIMIT * BUFFER_SIZE, PROT_READ | PROT_WRITE, MAP_SHARED, shmfd, 0);
    assert(share_mem != MAP_FAILED);
    close(shmfd);

    while (!stop_server) {
        int number = epoll_wait(epollfd, events, MAX_EVENT_NUMBER, -1);
        if ((number < 0) && (errno != EINTR)) {
            printf("epoll failure\n");
            break;
        }

        for (int i = 0; i < number; i++) {
            int sockfd = events[i].data.fd;
            // 新的客户连接到来
            if (sockfd == listenfd) {
                struct sockaddr_in client_address;
                socklen_t client_addrlength = sizeof(client_address);
                int connfd = accept(listenfd, (struct sockaddr*)&client_address, &client_addrlength);

                if (connfd < 0) {
                    printf("errno is: %d\n", errno);
                    continue;
                }
                if (user_count >= USER_LIMIT) {
                    const char* info = "too many users\n";
                    printf("%s", info);
                    send(connfd, info, strlen(info), 0);
                    close(connfd);
                    continue;
                }

                // 保存第user_counter个客户连接的相关数据
                users[user_count].address = client_address;
                users[user_count].connfd = connfd;
                // 在主进程和子进程间建立管道，以传递必要数据
                ret = socketpair(PF_UNIX, SOCK_STREAM, 0, users[user_count].pipefd);
                assert(ret != -1);
                pid_t pid = fork();
                if (pid < 0) {
                    close(connfd);
                    continue;
                } else if (pid == 0) { // 子进程
                    close(epollfd);
                    close(listenfd);
                    close(users[user_count].pipefd[0]);
                    close(sig_pipefd[0]);
                    close(sig_pipefd[1]);
                    run_child(user_count, users, share_mem);
                    munmap((void*)share_mem, USER_LIMIT * BUFFER_SIZE);
                    exit(0);
                } else { // 父进程
                    close(connfd);
                    close(users[user_count].pipefd[1]);
                    addfd(epollfd, users[user_count].pipefd[0]); // 监听子进程的管道
                    users[user_count].pid = pid;
                    // 记录新的客户连接在数组users中的索引值，建立进程pid和该索引值之间的映射关系
                    sub_process[pid] = user_count;
                    user_count++;
                }
            } else if ((sockfd == sig_pipefd[0]) && events[i].events & EPOLLIN) { // 处理信号事件
                int sig;
                char signals[1024];
                ret = recv(sig_pipefd[0], signals, sizeof(signals), 0);
                if (ret == -1) {
                    continue;
                } else if (ret == 0) {
                    continue;
                } else {
                    for (int i = 0; i < ret; ++i) {
                        switch(signals[i]) {
                            case SIGCHLD: { // 子进程推出，表示有某个客户端关闭了连接
                                pid_t pid;
                                int stat;
                                while ((pid = waitpid(-1, &stat, WNOHANG)) > 0) {
                                    // 用子进程的pid取得被关闭的客户连接的编号
                                    int del_user = sub_process[pid];
                                    sub_process[pid] = -1;
                                    if ((del_user < 0) || (del_user > USER_LIMIT)) {
                                        continue;
                                    }
                                    // 清除第del_user个客户连接使用的相关数据
                                    epoll_ctl(epollfd, EPOLL_CTL_DEL, users[del_user].pipefd[0], 0);
                                    close(users[del_user].pipefd[0]);
                                    users[del_user] = users[--user_count];
                                    sub_process[users[del_user].pid] = del_user;
                                }
                                if (terminate && user_count == 0) {
                                    stop_server = true;
                                }
                                break;
                            }
                            case SIGTERM:
                            case SIGINT: { // 结束服务器程序
                                printf("kill all the child now\n");
                                if (user_count == 0) {
                                    stop_server = true;
                                    break;
                                }
                                for (int i = 0; i < user_count; ++i) {
                                    int pid = users[i].pid;
                                    kill(pid, SIGTERM);
                                }
                                terminate = true;
                                break;
                            }
                            default: {
                                break;
                            }
                        }
                    }
                }
            } else if (events[i].events & EPOLLIN) { // 某个子进程向父进程写入了数据
                int child = 0;
                // 读取管道数据，child变量记录了是哪个客户连接有数据到达
                ret = recv(sockfd, (char*)&child, sizeof(child), 0);
                printf("read data from child accross pipe\n");
                if (ret == -1) {
                    continue;
                } else if (ret == 0) {
                    continue;
                } else {
                    // 向除负责处理第child个客户连接的子进程之外的其他子进程发送消息，通知他们有客户数据要写
                    for (int j = 0; j < user_count; ++j) {
                        if (users[j].pipefd[0] != sockfd) {
                            printf("send data to child accross pipe\n");
                            send(users[j].pipefd[0], (char*)&child, sizeof(child), 0);
                        }
                    }
                }
            }
        }
    }
    del_resource();
    return 0;
}

server:

client 1:

client 2:

先让服务器监听4444端口，之后客户端1连接，客户端2连接。客户端1发送11111，发现客户端1和2都能收到。客户端2发送2222，发现客户端1和2都能收到。

reference: linux高性能服务器编程——游双 $P_{255}$

基于时间堆的定时器

发表于 2022-03-10 更新于 2023-10-07 分类于 socket-programming
本文字数： 561 阅读时长 ≈ 2 分钟

#ifndef MIN_HEAP
#define MIN_HEAP

#include <iostream>
#include <netinet/in.h>
#include <time.h>
using std::exception;

#define BUFFER_SIZE 64

class heap_timer;
struct client_data {
    sockaddr_in address;
    int sockfd;
    char buf[BUFFER_SIZE];
    heap_timer* timer;
};

class heap_timer {
    public:
        heap_timer(int delay) {
            expire = timer(NULL) + delay;
        }

        time_t expire;
        void (*cb_func)(client_data*);
        client_data* user_data;
};

class time_heap {
    public:
        time_heap(int cap) throw (std::exception) : capacity(cap), cur_size(0) {
            array = new heap_timer* [capacity];
            if (!array) {
                throw std:exception();
            }
            for (int i = 0; i < capacity; ++i) {
                array[i] = NULL;
            }
        }

        time_heap(heap_timer** init_array, int size, int capacity) throw (std::exception) : cur_size(size), capacity(capacity) {
            if (capacity < size) {
                throw std::exception();
            }
            array = new heap_timer* [capacity];
            if (!array) {
                throw std::exception();
            }
            for (int i = 0; i < capacity; ++i) {
                array[i] = NULL;
            }
            if (size != 0) {
                for (int i = 0; i < size; ++i) {
                    array[i] = init_array[i];
                }
                for (int i = (cur_size - 1) / 2; i >= 0; --i) {
                    percolate_down(i);
                }
            }
        }

        ~time_heap() {
            for (int i = 0; i < cur_size; ++i) {
                delete array[i];
            }
            delete[] array;
        }

        void add_timer(heap_timer* timer) throw (std::exception) {
            if (!timer) {
                return;
            }
            if (cur_size >= capacity) {
                resize();
            }
            int hole = cur_size++;
            int parent = 0;
            for (; hole > 0; hole = parent) { // 上滤
                parent = (hole - 1) / 2;
                if (array[parent]->expire <= timer->expire) {
                    break;
                }
                array[hole] = array[parent];
            }
            array[hole] = timer;
        }

        void del_timer(heap_timer* timer) {
            if (!timer) {
                return;
            }
            timer->cb_func = NULL; // 所谓的延迟销毁，节省真正删除该定时器造成的开销，缺点是容易使数组膨胀
        }

        heap_timer* top() const {
            if (empty()) {
                return NULL;
            }
            return array[0];
        }

        void pop_timer() {
            if (empty()) {
                return;
            }
            if (array[0]) {
                delete array[0];
                array[0] = array[--cur_size];
                percolate_down(0);
            }
        }

        void tick() { // 把所有到期的事件都处理掉
            heap_timer* tmp = array[0];
            time_t cur = timer(NULL);
            while (!empty()) {
                if (!tmp) {
                    break;
                }
                if (tmp->expire > cur) {
                    break;
                }
                if (array[0]->cb_func) {
                    array[0]->cb_func(array[0]->user_data);
                }
                pop_timer();
                tmp = array[0];
            }
        }

        bool empty() const {
            return cur_size == 0;
        }

    private:
        void percolate_down(int hole) {
            heap_timer* temp = array[hole];
            int child = 0;
            for (; ((hole * 2 + 1) <= (cur_size - 1)); hole = child) {
                child = hole * 2 + 1;
                if ((child < (cur_size - 1)) && (array[child + 1]->expire < array[child]->expire)) { // 右孩子比左孩子小，换右孩子
                    ++child;
                }
                if (array[child]->expire < temp->expire) { // 交换操作
                    array[hole] = array[child];
                } else {
                    break;
                }
            }
            array[hole] = temp;
        }

        void resize() throw (std::exception) {
            heap_timer** temp = new heap_timer* [2 * capacity];
            for (int i = 0; i < 2 * capacity; ++i) {
                temp[i] = NULL;
            }
            if (!temp) {
                throw std::exception();
            }
            capacity = 2 * capacity;
            for (int i = 0; i < cur_size; ++i) {
                temp[i] = array[i];
            }
            delete[] array;
            array = temp;
        }

        heap_timer** array;
        int capacity;
        int cur_size;
}

#endif

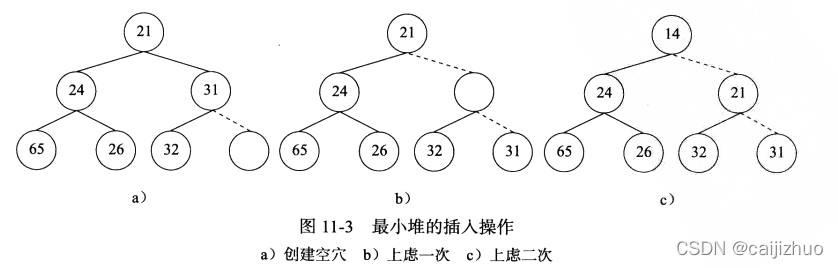

堆是一种高效的数据结构，不熟悉堆的同学先学习下堆。

上图来自Linux高性能服务器编程——游双 $P_{211}$

添加一个定时器的时间复杂度为 $O(log_2n)$ ，删除定时器复杂度为 $O(1)$ ，执行一个定时器时间复杂度为 $O(1)$ 。

reference：Linux高性能服务器编程——游双

基于时间轮的定时器

发表于 2022-03-08 更新于 2023-10-07 分类于 socket-programming
本文字数： 729 阅读时长 ≈ 3 分钟

#ifndef TIME_WHEEL_TIMER
#define TIME_WHEEL_TIMER

#include <time.h>
#include <netinet/in.h>
#include <stdio.h>

#define BUFFER_SIZE 64
class tw_timer;
struct client_data {
    sockaddr_in address;
    int sockfd;
    char buf[BUFFER_SIZE];
    tw_timer* timer;
};

class tw_timer {
    public:
        tw_timer(int rot, int ts) : next(NULL), prev(NULL), rotation(rot), time_slot(ts) {}

        int rotation;
        int time_slot;
        void (*cb_func)(client_data*);
        client_data* user_data;
        tw_timer* next;
        tw_timer* prev;
};

class time_wheel {
    public:
        time_wheel() : cur_slot(0) {
            for (int i = 0; i < N; ++i) {
                slots[i] = NULL;
            }
        }
        ~time_wheel() {
            for (int i = 0; i < N; ++i) {
                while(tmp) {
                    slots[i] = tmp->next;
                    delete tmp;
                    tmp = slots[i];
                }
            }
        }

        tw_timer* add_timer(int timeout) {
            if (timeout < 0) {
                return NULL;
            }
            int ticks = 0;
            // 根据待插入定时器的超时值计算他在时间轮转动多少滴答后触发，并将该滴答数存储变量tics中。若待插入定时器超时值小于槽间隔SI，将tics向上折合为1.否则向下折合为timeout/SI
            if (timeout < SI) {
                ticks = 1;
            } else {
                ticks = timeout / SI;
            }
            int rotation = ticks / N; // 计算待插入的定时器转动多少圈后触发
            int ts = (cur_slot + (ticks % N)) % N; // 定时器应该被插入哪个槽
            tw_timer* timer = new tw_timer(rotation, ts);

            if (!slots[ts]) { // 没有定时器，把新建的定时器插入，并设置为头节点
                printf("add timer, rotation is %d, ts is %d, cur_slot is %d\n", rotation, ts, cur_slot);
                slots[ts] = timer;
            } else { // 将定时器插入第ts个槽中
                timer->next = slots[ts];
                slots[ts]->prev = timer;
                slots[ts] = timer;
            }
            return timer;
        }

        void del_timer(tw_timer* timer) {
            if (!timer) {
                return;
            }
            int ts = timer->time_slot;
            if (timer == slots[ts]) { // 是头节点
                slots[ts] = slots[ts]->next;
                if (slots[ts]) {
                    slots[ts]->prev = NULL;
                }
                delete timer;
            } else {
                timer->prev->next = timer->next;
                if (timer->next) {
                    timer->next->prev = timer->prev;
                }
                delete timer;
            }
        }

        void tick() {
            tw_timer* tmp = slots[cur_slot];
            printf("current slot is %d\n", cur_slot);
            while (tmp) {
                printf("tick the timer once\n");
                if (tmp->rotation > 0) { // ratation大于0，这一轮不起作用
                    tmp->rotation--;
                    tmp = tmp->next;
                } else { // 到期了，执行定时任务并且删除定时器
                    tmp->cb_func(tmp->user_data);
                    if (tmp == slots[cur_slot]) {
                        printf("delete header in cur_slot\n");
                        slots[cur_slot] = tmp->next;
                        delete tmp;
                        if (slots[cur_slot]) {
                            slots[cur_slot]->prev = NULL;
                        }
                        tmp = slots[cur_slot];
                    } else {
                        tmp->prev->next = tmp->next;
                        if (tmp->next) {
                            tmp->next->prev = tmp->prev;
                        }
                        tw_timer* tmp2 = tmp->next;
                        delete tmp;
                        tmp = tmp2;
                    }
                }
            }
            cur_slot = ++cur_slot % N;
        }
    private:
        static const int N = 60; // 时间轮上槽的数目
        static const int SI = 1; // 每1s时间轮转动一次，槽间隔为1s
        tw_timer* slots[N]; // 每个元素指向一个定时器链表，无序
        int cur_slot;
}

#endif

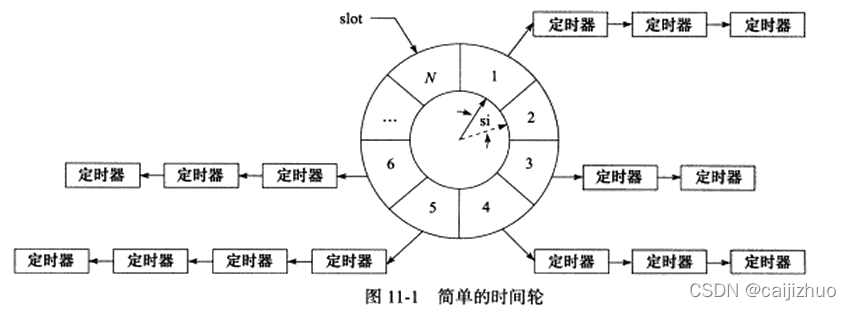

结构如图所示：
图片来自高性能服务器编程——游双
$time\ slot = (current\ slot + (time\ interval / slot\ interval)) \ \%\ N$
其中， $time\ slot$ 为需要添加到的时间槽， $current\ slot$ 为现在时间轮所处的时间槽， $time\ interval$ 为从现在开始计时，需要多久触发执行任务的时间， $slot\ interval$ 为每个时间槽所代表的时间。 $N$ 为时间槽总数。
想要提高定时精度，使 $slot\ interval$ 值变小。提高执行效率，增大 $N$ 。

添加定时器时间复杂度 $O(1)$ ，执行定时器时间复杂度 $O(N)$ ，实际上效率比 $O(N)$ 快，因为不同定时器被散列到不同的链表上了。当用多个时间轮时，该时间复杂度近似为 $O(1)$ 。

reference：高性能linux服务器编程——游双

处理非活动连接

发表于 2022-03-07 更新于 2023-10-07 分类于 socket-programming
本文字数： 863 阅读时长 ≈ 3 分钟

其中依赖的lst_timer.h见上篇文章

#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <assert.h>
#include <stdio.h>
#include <signal.h>
#include <unistd.h>
#include <errno.h>
#include <string.h>
#include <fcntl.h>
#include <stdlib.h>
#include <sys/epoll.h>
#include <pthread.h>
#include "lst_timer.h"

#define FD_LIMIT 65535
#define MAX_EVENT_NUMBER 1024
#define TIMESLOT 5
static int pipefd[2];

static sort_timer_lst timer_lst;
static int epollfd = 0;

int setnonblocking(int fd)
{
    int old_option = fcntl(fd, F_GETFL);
    int new_option = old_option | O_NONBLOCK;
    fcntl(fd, F_SETFL, new_option);
    return old_option;
}

void addfd(int epollfd, int fd)
{
    epoll_event event;
    event.data.fd = fd;
    event.events = EPOLLIN | EPOLLET;
    epoll_ctl(epollfd, EPOLL_CTL_ADD, fd, &event);
    setnonblocking(fd);
}

void sig_handler(int sig) // 将信号发往pipefd[1]
{
    int save_errno = errno;
    int msg = sig;
    send(pipefd[1], (char*)&msg, 1, 0);
    errno = save_errno;
}

void addsig(int sig)
{
    struct sigaction sa;
    memset(&sa, '\0', sizeof(sa));
    sa.sa_handler = sig_handler;
    sa.sa_flags |= SA_RESTART; // 重新调用被该信号终止的系统调用 P182
    sigfillset(&sa.sa_mask); // 在信号集中设置所有信号
    assert(sigaction(sig, &sa, NULL) != -1);
}

void timer_handler()
{
    timer_lst.tick();
    alarm(TIMESLOT);
}

void cb_func(client_data* user_data)
{
    epoll_ctl(epollfd, EPOLL_CTL_DEL, user_data->sockfd, 0); // 把user_data->sockfd从监听的fd中删除
    assert(user_data);
    close(user_data->sockfd);
    printf("close fd %d\n", user_data->sockfd);
}

int main(int argc, char* argv[])
{
    if (argc <= 2) {
        printf("usage:%s ip_address port_number\n", basename(argv[0]));
        return 1;
    }
    const char* ip = argv[1];
    int port = atoi(argv[2]);

    int ret = 0;
    struct sockaddr_in address;
    bzero(&address, sizeof(address));
    address.sin_family = AF_INET;
    inet_pton(AF_INET, ip, &address.sin_addr);
    address.sin_port = htons(port);

    int listenfd = socket(PF_INET, SOCK_STREAM, 0);
    assert(listenfd >= 0);

    ret = bind(listenfd, (struct sockaddr*)&address, sizeof(address));
    assert(ret != -1);

    ret = listen(listenfd, 5);
    assert(ret != -1);

    epoll_event events[MAX_EVENT_NUMBER];
    int epollfd = epoll_create(5);
    assert(epollfd != -1);
    addfd(epollfd, listenfd);

    ret = socketpair(PF_UNIX, SOCK_STREAM, 0, pipefd); // 双向管道
    assert(ret != -1);
    setnonblocking(pipefd[1]);
    addfd(epollfd, pipefd[0]);

    addsig(SIGALRM);
    addsig(SIGTERM);
    bool stop_server = false;

    client_data* users = new client_data[FD_LIMIT];
    bool timeout = false;
    alarm(TIMESLOT); // 定时

    while (!stop_server) {
        int number = epoll_wait(epollfd, events, MAX_EVENT_NUMBER, -1);
        if ((number < 0) && (errno != EINTR)) { // EINTR代表临时性失败,进行系统调用时执行信号处理函数去了。 再次调用有可能成功
            printf("epoll failure\n");
            break;
        }

        for (int i = 0; i < number; i++) {
            int sockfd = events[i].data.fd;
            if (sockfd == listenfd) {
                struct sockaddr_in client_address;
                socklen_t client_addrlength = sizeof(client_address);
                int connfd = accept(listenfd, (struct sockaddr*)&client_address, &client_addrlength);
                addfd(epollfd, connfd);
                users[connfd].address = client_address;
                users[connfd].sockfd = connfd;

                util_timer* timer = new util_timer; // 加入定时器
                timer->user_data = &users[connfd];
                timer->cb_func = cb_func;
                time_t cur = time(NULL);
                timer->expire = cur + 3 * TIMESLOT;
                users[connfd].timer = timer;
                timer_lst.add_timer(timer);
            } else if ((sockfd == pipefd[0]) && (events[i].events & EPOLLIN)) { // 处理信号
                int sig;
                char signals[1024];
                ret = recv(pipefd[0], signals, sizeof(signals), 0);
                if (ret == -1) {
                    continue;
                } else if (ret == 0) {
                    continue;
                } else {
                    for (int i = 0; i < ret; ++i) {
                        switch(signals[i]) {
                            case SIGALRM: {

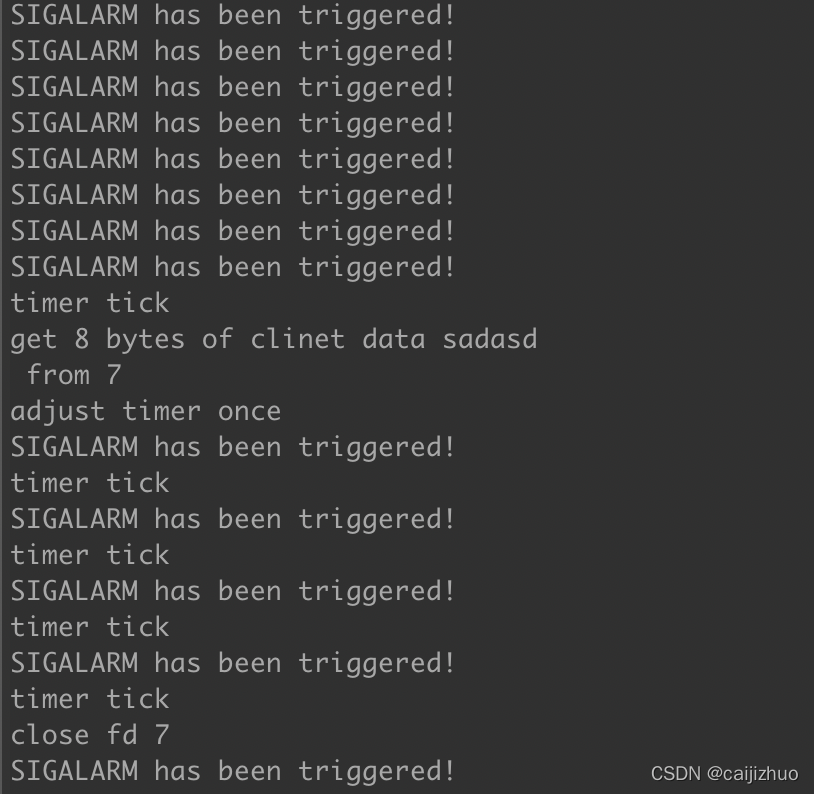

                                printf("SIGALARM has been triggered!\n");
                                timeout = true; // 标记有定时任务要处理
                                break;
                            }
                            case SIGTERM: {
                                stop_server = true;
                            }
                        }
                    }
                }
            } else if (events[i].events & EPOLLIN) { // 处理接收数据
                memset(users[sockfd].buf, '\0', BUFFER_SIZE);
                ret = recv(sockfd, users[sockfd].buf, BUFFER_SIZE - 1, 0);
                printf("get %d bytes of clinet data %s from %d\n", ret, users[sockfd].buf, sockfd);
                util_timer* timer = users[sockfd].timer;
                if (ret < 0) {
                    if (errno != EAGAIN) { // 非阻塞系统调用由于资源限制，意思很明显，让你再次尝试
                        cb_func(&users[sockfd]); // 发生读错误，sockfd可以删了
                        if (timer) {
                            timer_lst.del_timer(timer);
                        }
                    }
                } else if (ret == 0) { // 对方关闭连接 服务器也关闭连接
                    cb_func(&users[sockfd]);
                    if (timer) {
                        timer_lst.del_timer(timer);
                    }
                } else {
                    if (timer) {
                        time_t cur = time(NULL);
                        timer->expire = cur + 3 * TIMESLOT;
                        printf("adjust timer once\n");
                        timer_lst.adjust_timer(timer);
                    }
                }
            } else {

            }
        }
        if (timeout) { // 处理定时事件（清理链表中超时的事件），优先级比io低。
            timer_handler();
            timeout = false;
        }
    }

    close(listenfd);
    close(pipefd[1]);
    close(pipefd[0]);
    delete[] users;
    return 0;

}

每过五秒就会发送一个SIGALRM信号，每个客户端和服务器的过期连接时常是3个timeslot，超时后服务器会自动断开与客户端的连接。每次客户端向服务器发送信息后，会调用adjust_timer来重新调整这个连接的到期时间，至发送信息后+三个timeslot。

服务器：

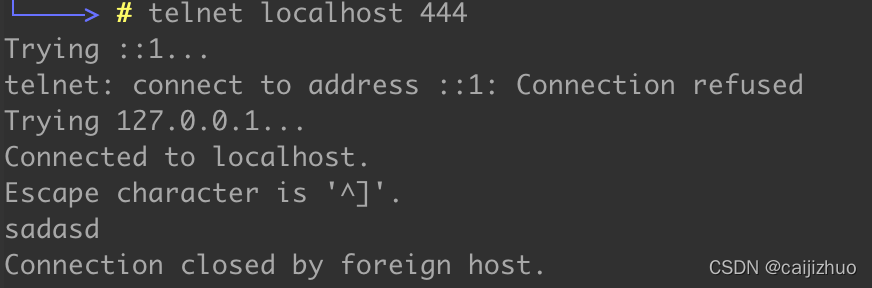

客户端：

reference: Linux高性能服务器编程——游双

基于升序链表的定时器

发表于 2022-03-03 更新于 2023-10-07 分类于 socket-programming
本文字数： 381 阅读时长 ≈ 1 分钟

#ifndef LST_TIMER
#define LST_TIMER

#include <time.h>
#define BUFFER_SIZE 64
class util_timer;

struct client_data {
    sockaddr_in address;
    int sockfd;
    char buf[BUFFER_SIZE];
    util_timer* timer;
};

class util_timer {
public:
    util_timer() : prev(NULL), next(NULL){}
    time_t expire;
    void (*cb_func)(client_data*);
    client_data* user_data;
    util_timer* prev;
    util_timer* next;
};

class sort_timer_lst
{
public:
    sort_timer_lst() : head(NULL), tail(NULL) {}
    ~sort_timer_lst() {
        util_timer* tmp = head;
        while (tmp) {
            head = tmp->next;
            delete tmp;
            tmp = head;
        }
    }

    void add_timer(util_timer* timer) {
        if (!timer) {
            return;
        }
        if (!head) {
            head = tail = timer;
            return;
        }

        if (timer->expire < head->expire) {
            timer->next = head;
            head->prev = timer;
            head = timer;
            return;
        }
        add_timer(timer, head);
    }

    void adjust_timer(util_timer* timer) {
        if (!timer) {
            return;
        }
        util_timer* tmp = timer->next;
        if (!tmp || (timer->expire < tmp->expire)) {
            return;
        }
        if (timer == head) {
            head = head->next;
            head->prev = NULL;
            timer->next = NULL;
            add_timer(timer, head);
        } else {
            timer->prev->next = timer->next;
            timer->next->prev = timer->prev;
            add_timer(timer, timer->next);
        }
    }

    void del_timer(util_timer* timer) {
        if (!timer) {
            return;
        }
        if ((timer == head) && (timer == tail)) {
            delete timer;
            head = NULL;
            tail = NULL;
            return;
        }

        if (timer == head) {
            head = head->next;
            head->prev = NULL;
            delete timer;
            return;
        }

        if (timer == tail) {
            tail = tail->prev;
            tail->next = NULL;
            delete timer;
            return;
        }

        timer->prev->next = timer->next;
        timer->next->prev = timer->prev;
        delete timer;
    }

    void tick() {
        if (!head) {
            return;
        }
        printf("timer tick\n");
        time_t cur = time(NULL);
        util_timer* tmp = head;

        while (tmp) {
            if (cur < tmp->expire) {
                break;
            }
            tmp->cb_func(tmp->user_data);
            head = tmp->next;
            if (head) {
                head->prev = NULL;
            }
            delete tmp;
            tmp = head;
        }
    }
private:
    void add_timer(util_timer* timer, util_timer* lst_head) {
        util_timer* prev = lst_head;
        util_timer* tmp = prev->next;
        while (tmp) {
            if (timer->expire < tmp->expire) {
                prev->next = timer;
                timer->next = tmp;
                tmp->prev = timer;
                timer->prev = prev;
                break;
            }
            prev = tmp;
            tmp = tmp->next;
        }

        if (!tmp) {
            prev->next = timer;
            timer->prev = prev;
            timer->next = NULL;
            tail = timer;
        }
    }

    util_timer* head;
    util_timer* tail;
};

#endif /* LST_TIMER end */

此文件被包含在头文件中以便方便使用。tick为心跳函数，每隔一段时间执行一次。判断任务到期为定时器expire参数小于当前系统时间。
执行时间复杂度：
添加 $O(n)$ ,删除 $O(1)$ ，执行任务 $O(1)$

reference:
Linux高性能服务器编程——游双

用SIGURG检测带外数据是否到达

发表于 2022-02-28 更新于 2023-10-07 分类于 socket-programming
本文字数： 501 阅读时长 ≈ 2 分钟

带外数据

带外数据用于迅速告知对方本端发生的重要的事件。它比普通的数据（带内数据）拥有更高的优先级，不论发送缓冲区中是否有排队等待发送的数据，它总是被立即发送。带外数据的传输可以使用一条独立的传输层连接，也可以映射到传输普通数据的连接中。

SIGURG信号的作用

在linux环境下，内核通知应用程序带外数据到达的方式有两种：

一种就是利用I/Ｏ复用技术的系统调用（如select）在接受到带外数据时将返回，并向应用程序报告socket上的异常事件。
另一种方法就是使用SIGURG信号。（下面代码）

代码：

#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <assert.h>
#include <stdio.h>
#include <unistd.h>
#include <stdlib.h>
#include <errno.h>
#include <string.h>
#include <signal.h>
#include <fcntl.h>

#define BUF_SIZE 1024

static int connfd;

void sig_urg(int sig)
{
    int save_errno = errno;
    char buffer[BUF_SIZE];
    memset(buffer, '\0', BUF_SIZE);
    int ret = recv(connfd, buffer, BUF_SIZE - 1, MSG_OOB); // 接收带外数据
    printf("got %d bytes of oob data '%s\n' ", ret, buffer);
    errno = save_errno;
}

void addsig (int sig, void (* sig_handler) (int))
{
    struct sigaction sa;
    memset(&sa, '\0', sizeof(sa));
    sa.sa_handler = sig_handler;
    sa.sa_flags |= SA_RESTART;
    sigfillset(&sa.sa_mask);
    assert(sigaction(sig, &sa, NULL) != -1);
}

int main(int argc, char* argv[])
{
    if (argc <= 2)
    {
        printf("usage: %s ip_address port_number\n", basename(argv[0]));
        return 1;
    }
    const char* ip = argv[1];
    int port = atoi(argv[2]);

    struct sockaddr_in address;
    bzero(&address, sizeof(address));
    address.sin_family = AF_INET;
    inet_pton(AF_INET, ip, &address.sin_addr);
    address.sin_port = htons(port);

    int sock = socket(PF_INET, SOCK_STREAM, 0);
    assert(socket >= 0);

    int ret = bind(sock, (struct sockaddr*)&address, sizeof(address));
    assert(ret != -1);

    ret = listen(sock, 5);
    assert(ret != -1);

    struct sockaddr_in client;
    socklen_t client_addrlength = sizeof(client);
    connfd = accept(sock, (struct sockaddr*)&client, &client_addrlength);
    if (connfd < 0) {
        printf("errno is: %d\n", errno);
    } else {
        addsig(SIGURG, sig_urg);
        fcntl(connfd, F_SETOWN, getpid()); // 设置SIGURG信号之前，我们必须设置socket的宿主进程或进程组

        char buffer[BUF_SIZE];
        while (1) {
            memset(buffer, '\0', BUF_SIZE);
            ret = recv(connfd, buffer, BUF_SIZE - 1, 0);
            if (ret <= 0) {
                break;
            }
            printf("got %d bytes of normal data '%s\n", ret, buffer);
        }
        close(connfd);
    }
    close(sock);
    return 0;
}

客户端（本机模拟发送SIGURG）

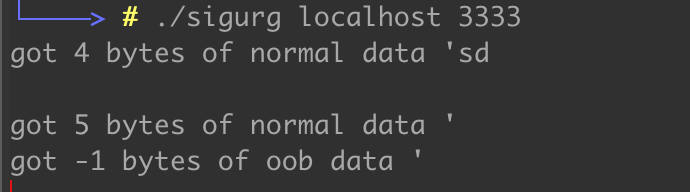

服务端反应

reference：
linux高性能服务器编程——游双

矩阵快速幂

发表于 2022-02-26 更新于 2023-10-07 分类于 algorithm
本文字数： 710 阅读时长 ≈ 3 分钟

关于什么是快速幂：快速幂代码
现在回想下问题斐波那契数列： $f(1) = 1, f(2) = 1$ 。在 $n > 2$ 时， $f(n) = f(n - 1) + f (n - 2)$ 。求 $f(n)$ 。
朴素动态规划解法：

int fib(int n) {
    int dp[n];
    dp[0] = 1, dp[1] = 1;
    for (int i = 2; i < n; i++) {
        dp[i] = dp[i - 1] + dp[i - 2];
    }
    return dp[n - 1];
}

现在考虑 $F_{n}$ 是由 $F_{n-1}$ 和 $F_{n-2}$ 线性变换得出。则有：

[F_{n} \ \ \ F_{n-1}] = [F_{n-1}\ \ \ F_{n-2}] \times \begin{bmatrix} 1 & 1 \\ 1 & 0 \end{bmatrix}

设矩阵 $\begin{bmatrix} 1 & 1 \\ 1 & 0 \end{bmatrix}$ 为 $P$ 。
则有

[F_{n+1}\ \ \ F_{n}] = [F_{n} \ \ \ F_{n-1}] \times \begin{bmatrix} 1 & 1 \\ 1 & 0 \end{bmatrix} = [F_{n-1}\ \ \ F_{n-2}] \times\begin{bmatrix} 1 & 1 \\ 1 & 0 \end{bmatrix}^2 = [F_{n-1}\ \ \ F_{n-2}] \times P^2

因为矩阵乘法满足结合律，所以我们可以直接用矩阵 $P$ 的幂来得到 $F_n$ 的值。而求矩阵 $P^n$ 的时间复杂度为 $O(log(n))$ 。
C++代码如下

const int maxn = 105;
struct Matrix{
    int n, m;
    int v[maxn][maxn];
    Matrix(int n, int m) : n(n), m(m) {}

    void init() {
        memset(v, 0, sizeof(v));
    }

    Matrix operator* (const Matrix B) const {
        Matrix ans(n, B.m); // for ans
        ans.init();
        for (int i = 0; i < n; i++) {
            for (int j = 0; j < B.m; j++) {
                for (int k = 0; k < m; k++) {
                    ans.v[i][j] = ans.v[i][j] + v[i][k] * B.v[k][j];
                }
            }
        }
        return ans;
    }

    void print() {
        for (int i = 0; i < n; i++) {
            for (int j = 0; j < m; j++) {
                cout << v[i][j] << " ";
            }
            cout << endl;
        }
    }
};

Matrix q_pow (Matrix& A, int b) {
    Matrix ret(A.n, A.m);

    ret.init();
    for (int i = 0; i < ret.n; i++) { // 初始化E
        ret.v[i][i] = 1;
    }

    while (b) {
        if (b & 1) {
            ret = ret * A;
        }
        A = A * A;
        b >>= 1;
    }
    return ret;
}

完整代码如下:

#include <iostream>
#include <cstdio>
#include <cstring>
using namespace std;
using ll = long long;
const int maxn = 105;
struct Matrix{
    int n, m;
    int v[maxn][maxn];
    Matrix(int n, int m) : n(n), m(m) {}

    void init() {
        memset(v, 0, sizeof(v));
    }

    Matrix operator* (const Matrix B) const {
        Matrix ans(n, B.m); // for ans
        ans.init();
        for (int i = 0; i < n; i++) {
            for (int j = 0; j < B.m; j++) {
                for (int k = 0; k < m; k++) {
                    ans.v[i][j] = ans.v[i][j] + v[i][k] * B.v[k][j];
                }
            }
        }
        return ans;
    }

    void print() {
        for (int i = 0; i < n; i++) {
            for (int j = 0; j < m; j++) {
                cout << v[i][j] << " ";
            }
            cout << endl;
        }
    }
};

Matrix q_pow (Matrix& A, int b) {
    Matrix ret(A.n, A.m);

    ret.init();
    for (int i = 0; i < ret.n; i++) { // 初始化E
        ret.v[i][i] = 1;
    }

    while (b) {
        if (b & 1) {
            ret = ret * A;
        }
        A = A * A;
        b >>= 1;
    }
    return ret;
}

int fib(int n) {
    int dp[n];
    dp[0] = 1, dp[1] = 1;
    for (int i = 2; i < n; i++) {
        dp[i] = dp[i - 1] + dp[i - 2];
    }
    return dp[n - 1];
}

int main()
{
    int n = 44;
    clock_t startTime, endTime;
    startTime = clock(); // cpu clock time
    cout << fib(n) << endl;
    endTime = clock();
    cout << (endTime - startTime) << endl;
    // [F(n)  F(n - 1)] = [F(n - 1)  F(n - 2)] * [1 1]
    //                                           [1 0]
    Matrix start = Matrix(1, 2);
    start.v[0][0] = 1;
    start.v[0][1] = 1;

    Matrix P = Matrix(2, 2);
    P.v[0][0] = 1;
    P.v[0][1] = 1;
    P.v[1][0] = 1;
    P.v[1][1] = 0;

    startTime = clock(); // cpu clock time
    Matrix ret = start * q_pow(P, n - 1);
    endTime = clock();
    cout << (endTime - startTime) << endl;
    ret.print();
}

这里暂且不考虑溢出问题。当 $n$ 足够大的时候，可以看到快速幂需要的时钟周期明显缩短。
